Production Introduction

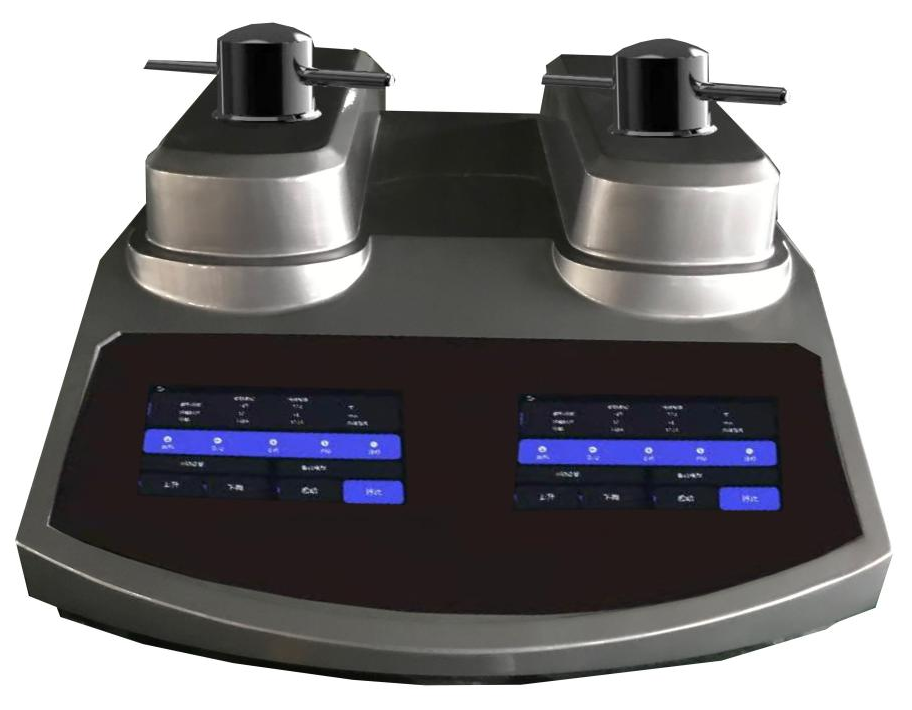

LANCE ZXQ-4S dual head fully automatic metallographic embedding machine adopts hydraulic control, and the biggest feature of the cylinder body is the special process design. This machine can automatically heat and pressure, cool down after pressing and forming, stop automatically, open the upper cover, press and hold the up button, and the sample will automatically rise to take out the part. The embedding process is completed in 6 minutes.
Technical Specifications
| Standard configuration | |
| parts | Specifications |
| structure | Desktop |
| Temperature setting range | ф25mm ф30mm、ф45mm (Choose two options) |
| Range of insulation time setting | 0-300℃ |
| Sample preparation pressure | 0-10MPa |
| Sample preparation time | 5-6min |
| Total power of the power supply | 1600W |
| Heater power | 220V 5000W(ф22 and ф30mm)/2000W(φ45mm） |
| Data storage | 10 sets of data storage |
| Cooling method | 50 Water cooling |
| working voltage | 220V 50HZ |
| working voltage | 670*650*395（mm） |
| Net weight | 50kg |
| Gross weight | 65kg |
