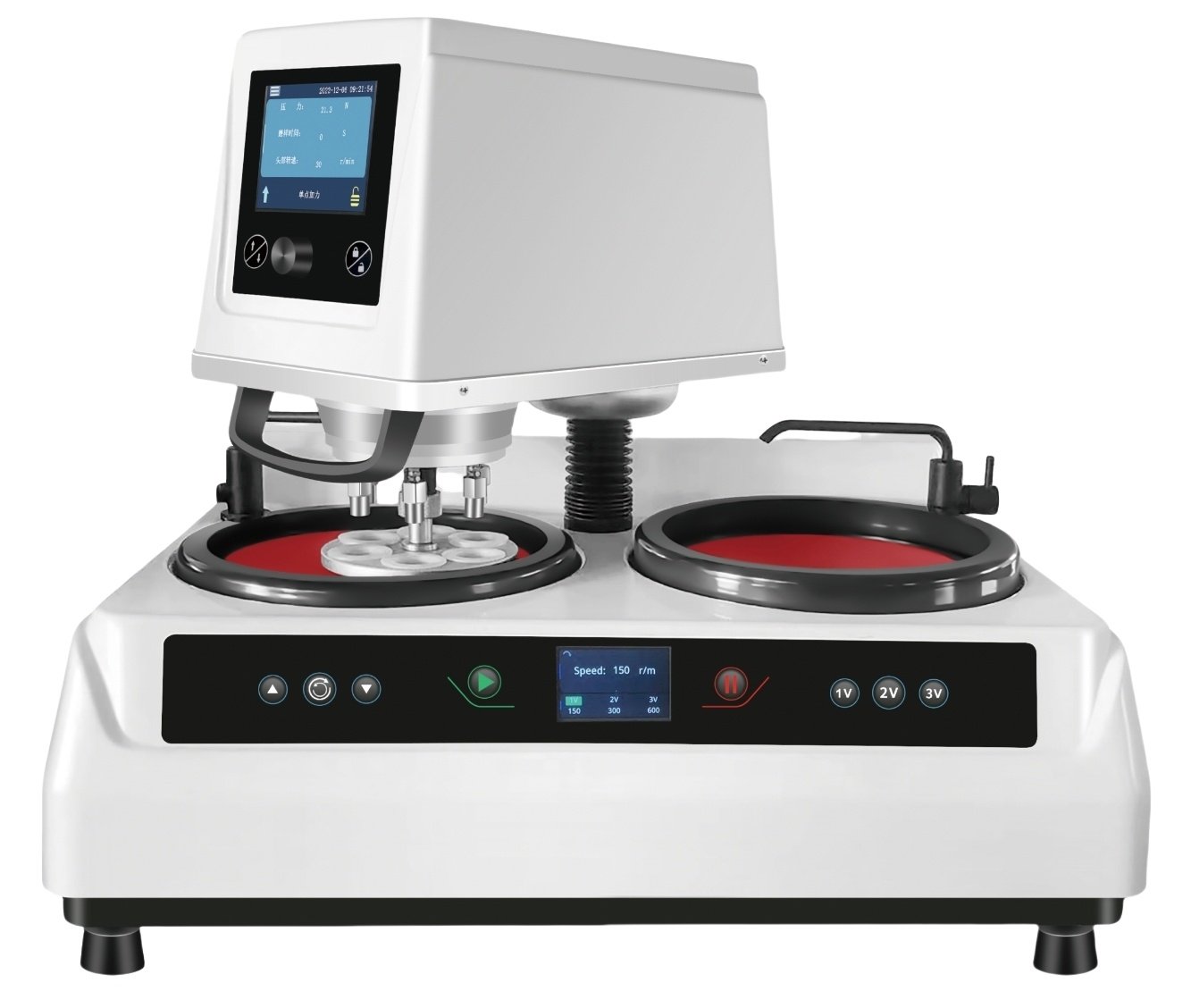

Features
●One machine with both central force pressure and single point pressure, two methods can be quickly switch.
●The automatic grinding system can adjust the sample preparation pressure, grinding time and speed, with easy setting and operation.
●The machine adopts high-definition LCD touch screen control and display.
●The electromagnetic lock of the polishing head has an automatic locking function. After locking, the polishing head will be locked and the clamping plate will also be in a fixed position for sample making.
●The central force application device can clamp irregular specimens, and the clamping method is simple to operate. Two types of application devices can be quickly switch.
●Single point force application device, holding regular samples, can adjust the pressure through electromagnetic proportional valve, and the clamping method is simple to operate. Two types of application devices can be quickly switch.
●Quick disc replacement system, equipped with magnetic discs and anti stick discs, can quickly replace sandpaper and flannel, reducing the frequency and loss of replacing sand consumables.
Technical Specifications
| Structure | Double disc structure |
| Disc diameter | φ250mm（Can be customized φ230mm） |
| Disc speed | 50-1000 r/min（Stepless） |
| 400 / 600 / 800 r/min（3 speeds） | |
| Disc rotational direction | Clockwise or counterclockwise |
| Head speed | 5-150 r/min（Stepless） |
| Sample Qty. | 6pcs |
| Input Air | 0.4-0.7Mpa |
| Pressure | Single point force 20-70N
Central force 150-300N |
| Sample preparation time | 0-3000 S |
| Sample diameter | Standard φ30mm
（Can be customized φ22-φ45mm） |
| Power supply | Single-phase AC220V 50Hz |
| uInput power | 1.1KW |
| Dimension | 735*570*590mm |
| Net weight | 100kg |
| Gross weight | 125kg |
Standard Delivery
●Main unit
●Polishing cloth
●Sandpaper
●Grinding and polishing disc
●Aluminum buckle
●Water Inlet Pipe
●Water outlet pipe
●User manual
●Certificate
