Features
● Measure the thickness of concrete, rock, glass and other nonmetallic plates.
● Sound alarm, signal strength bar are used to improve measuring accuracy.
● Direct digital read out of the thickness value avoid the inaccuracy of manual comparison.
● Test data create and data logging
● RS232 and USB interface to PC.
● Real time analysis of the tested data.

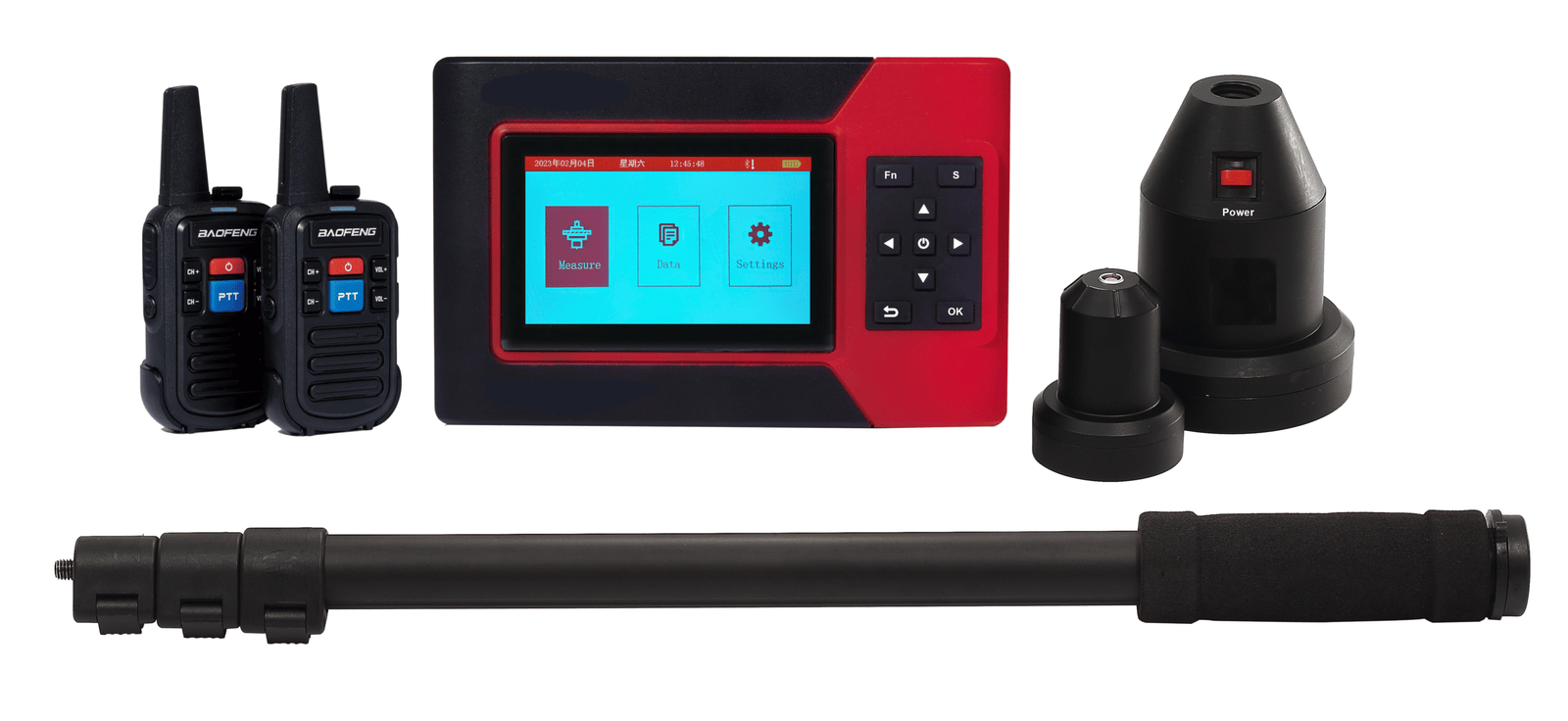

| Standard Delivery | |||
| Main unit | 1 | Shoulder strap | 1 |
| Transmitting Transducer | 1 | AA battery (LR6) | 6 |
| Receiving Transducer | 1 | AAA battery (LR03) | 6 |
| Supporting bar | 5 | Key | 2 |
| Interphone | 2 | LANCE certificate | 1 |
| Signal cable | 1 | Warranty card | 1 |
| Charger | 1 | Instruction manual | 1 |
Technical Specifications
|
Measuring range |
40-820mm |
|
Accuracy |
±1mm[When thickness = (40-600mm)] |
|
±2mm[When thickness = (601-820mm)] |
|
|
Memory |
32000 test data and 4000 components |
|
Power |
AA batteries (LR6) x 6 |
|
Display |
Large graphic display |
|
Operating temperature |
-10℃~40℃ |
|
Humidity |
<90% |
|
Dimension (mm) |
210x153x90 |
|
Weight (g) |
880 |
