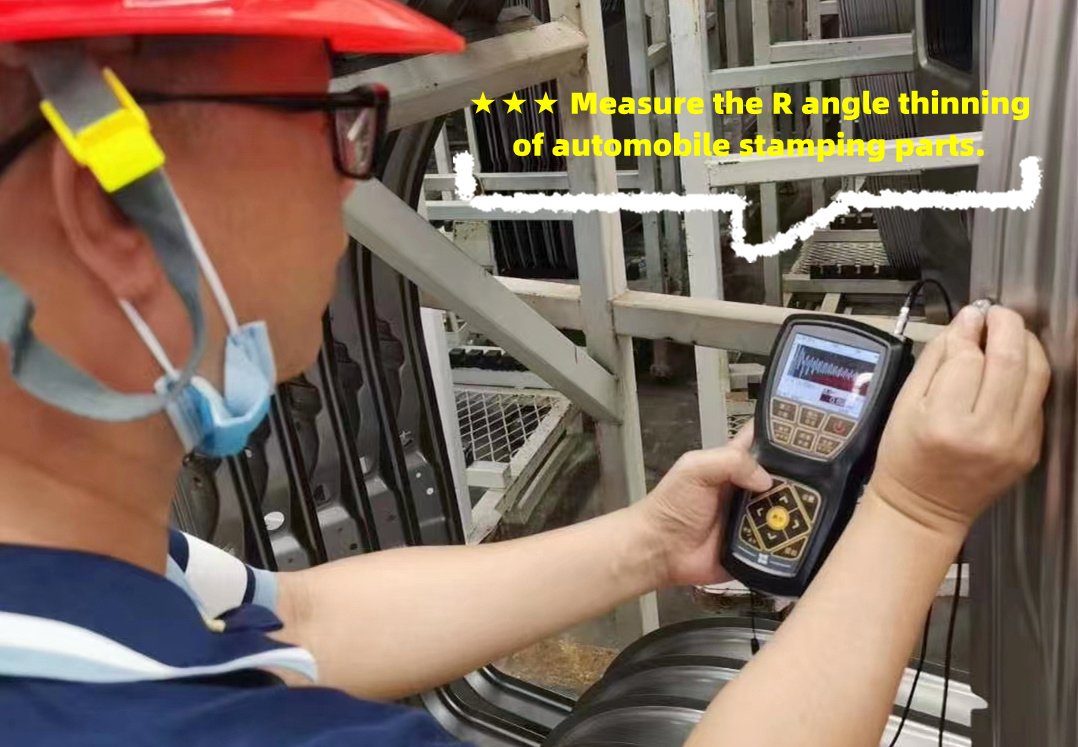

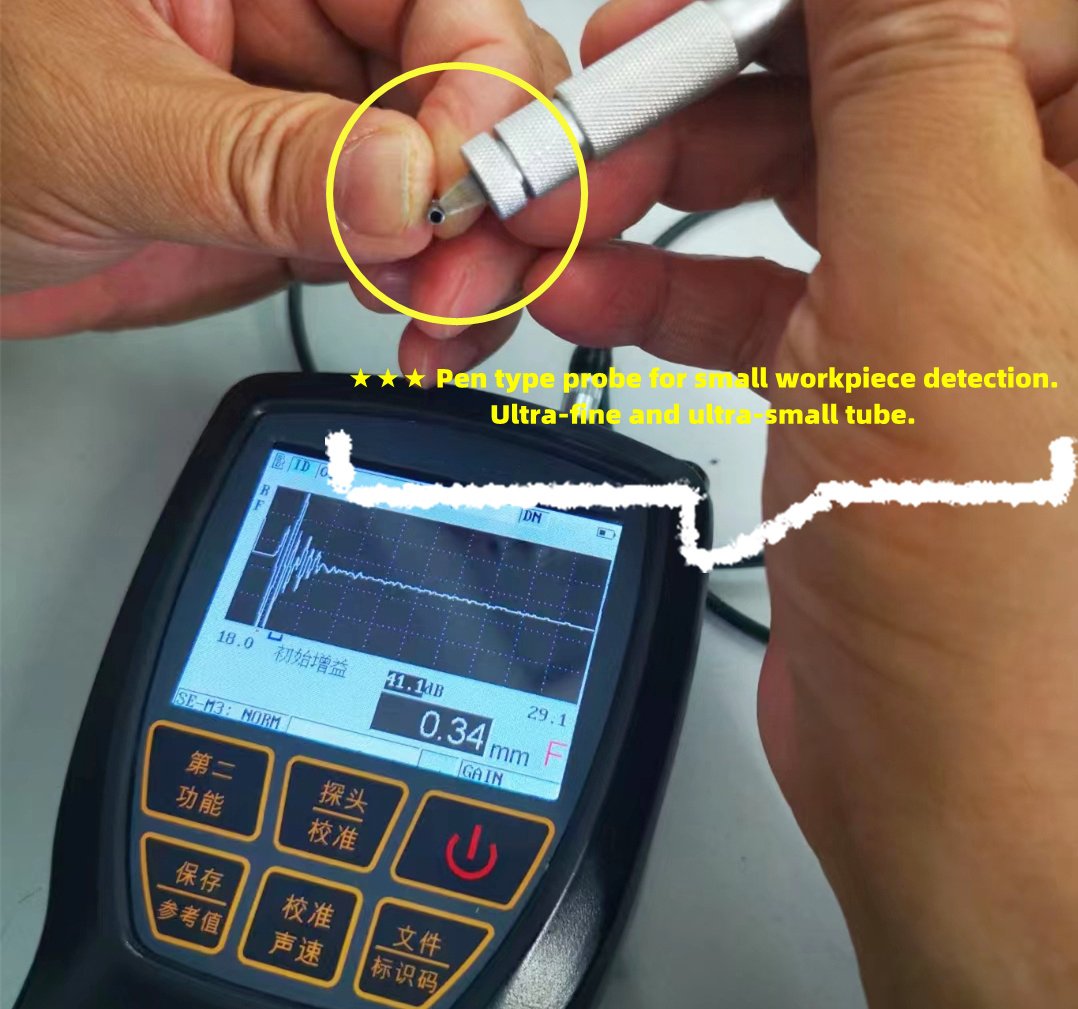

⚫ A-scan waveform can be displayed for echo analysis and measurement of complex workpiece;
⚫ Compatible with many types of transducers, both single and dual element transducers;
⚫ Users can set blanks to shield aftershocks or clutter;
⚫ Echo-echo measures the true metal thickness with ignoring the thickness of coating layer.

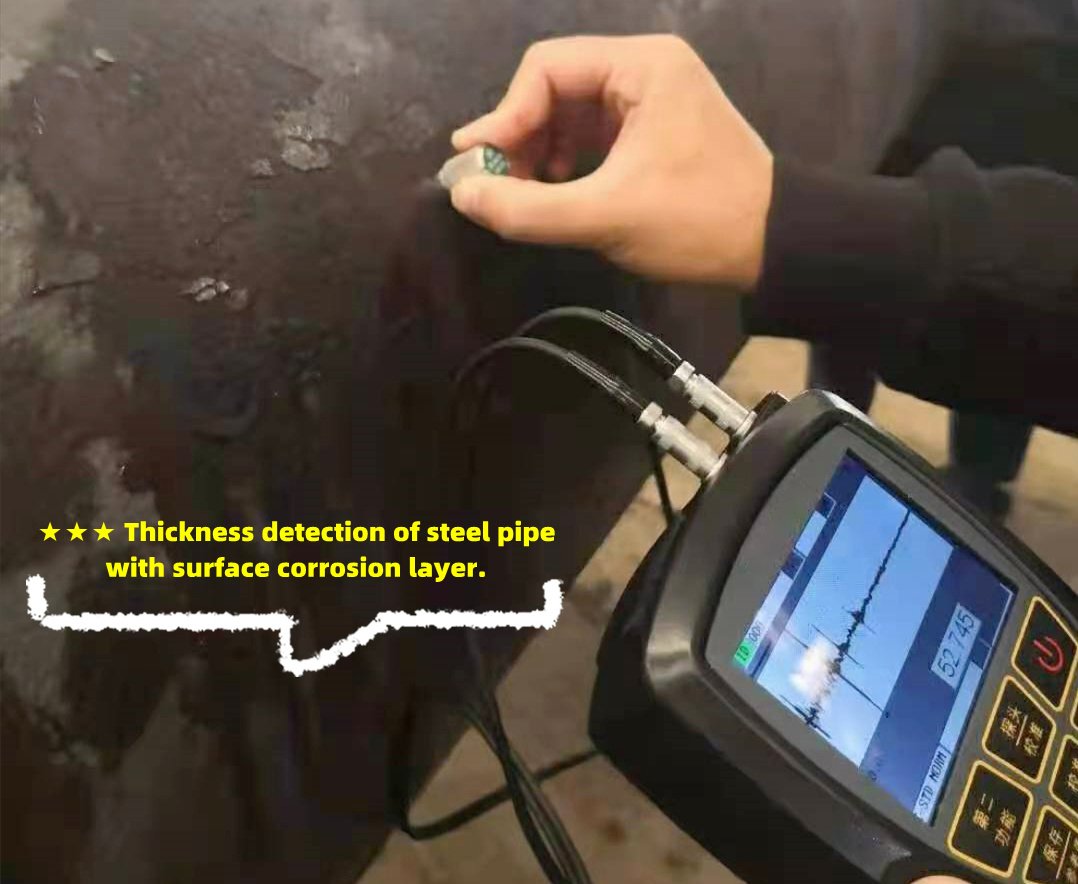

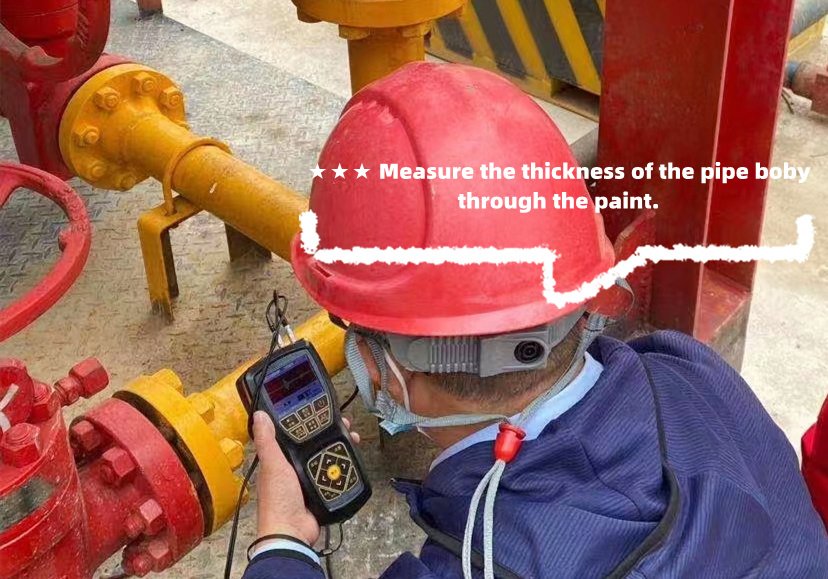

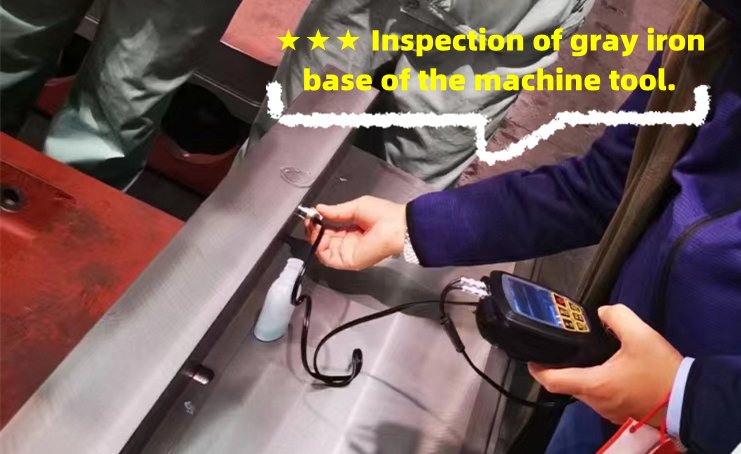

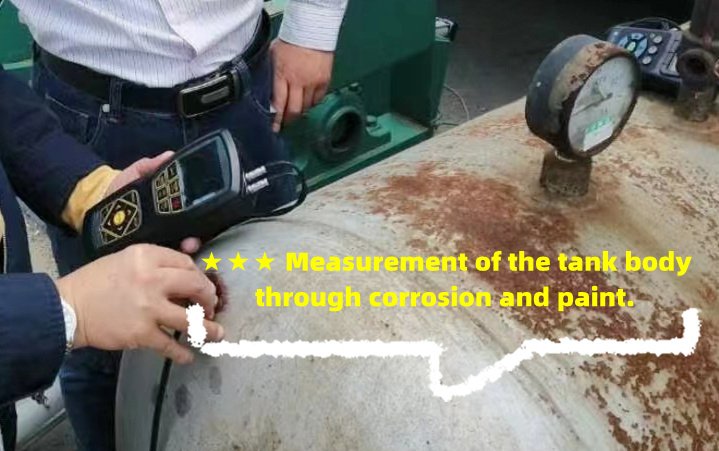

⚫ Thru-coat technology measures metal and nonmetallic coating thickness.
⚫ Signal auto-amplification function (centered display of the detected echo);
⚫ Adjustable voltage variable pulse width square wave pulse generator;

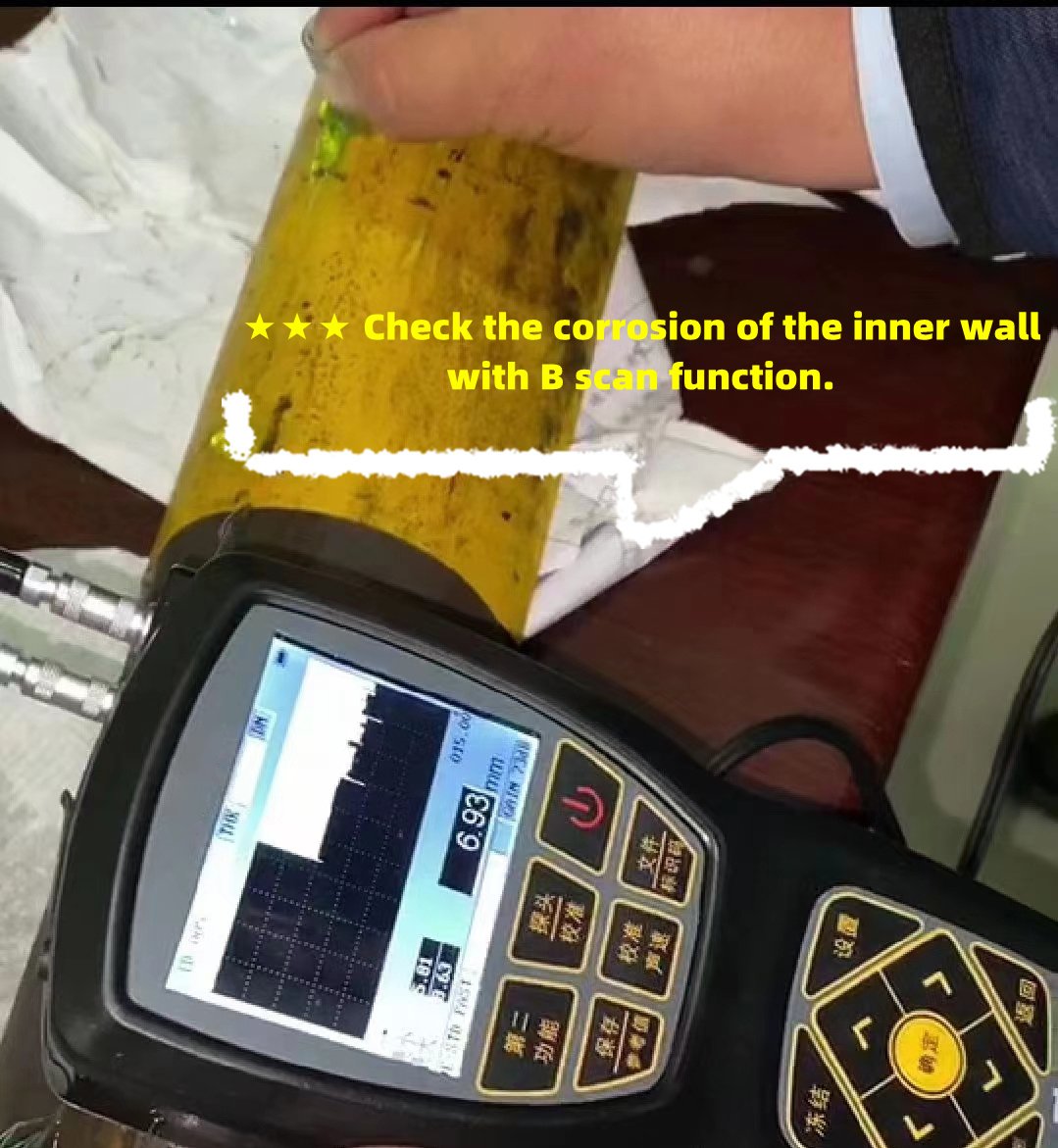

⚫ Single value B-scan display function;
⚫ Users can turn on fast measurement mode up to 20 times per second;
⚫ Alarm function allows users to set the upper and lower limits of the alarm;
⚫ Differential, maximum and minimum display mode;
⚫ Store up to 500,000 measured values and waveforms.
| Standard Delivery | Optional Accessory | |
| Main unit | 1 | Communication cable |
| 5MHz dual crystal probe | 1 | Standard test block |
| Couplant | 1 | Probes |
| AA battery | 3 | |
| LANCE certificate | 1 | |
| Warranty card | 1 | |
| Instruction manual | 1 |
|
Measuring range |
0.20~500mm (depend on probe) |
|
Display resolution |
0.001 mm, 0.01 mm or 0.1 mm |
|
Sound velocity range |
508 m/s～18699m/s |
|
Repeatability |
5M probe and above: 0.03mm |
|
Display screen |
Color TFT LCD, 320×240 pixels |
|
Gain range |
0-99dB, 1dB step |
|
Pulse Generator |
Adjustable Square Wave Pulse Generator |
|
Emission voltage |
60V, 110V, 150V, 200V optional |
|
Emission pulse width |
varies with transducer frequency |
|
Frequency range |
0.5 Mhz~20Mhz |
|
Measurement rate |
standard (4Hz), fast (20Hz) |
|
Transducer settings |
10 sets of fixed setting and 22 sets of custom setting |
|
Data Storage |
500 data files, each capable of storing 1000 measurements and waveforms |
|
Interface |
USB |
|
Power |
three AA battery or NiMH batteries |
|
Working temperature |
0~40℃ |
|
Weight (g) |
360g |
|
Dimension |
187mm×87 mm×43 mm |
