● Nondestructive hardness tester for testing hardened layer and thin workpieces
● 3.5-inch color LCD screen
● It indicates the battery status and alarms in low battery
● Conversion of common hardness sales (HV, HB, HRC, HRB)
● Hardness value calibration and delete calibration
● Select the tested material, mainly steel and cast steel. After calibration with the standard test block, it can measure alloy tool steel, special cast iron and non-ferrous metals
● Large memory: built-in 8G SD card.
● Free measurement in all directions, no compensation is needed.
● It can display the maximum value, minimum value, average value, standard deviation, measurement times, previous measurement values, etc.
● Upper/lower limits setting and alarm when out of the limits
● Rechargeable lithium ion battery, continuous working time is more than 30 hours

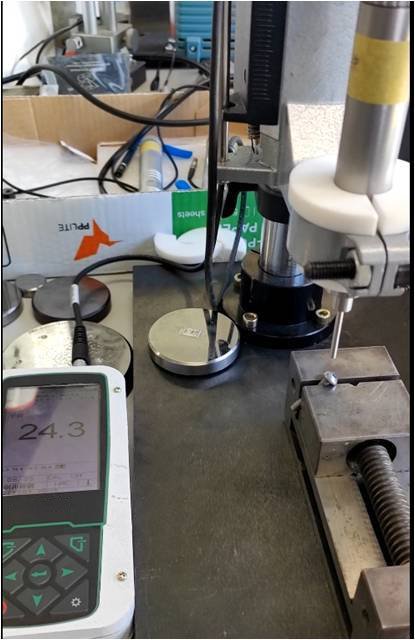

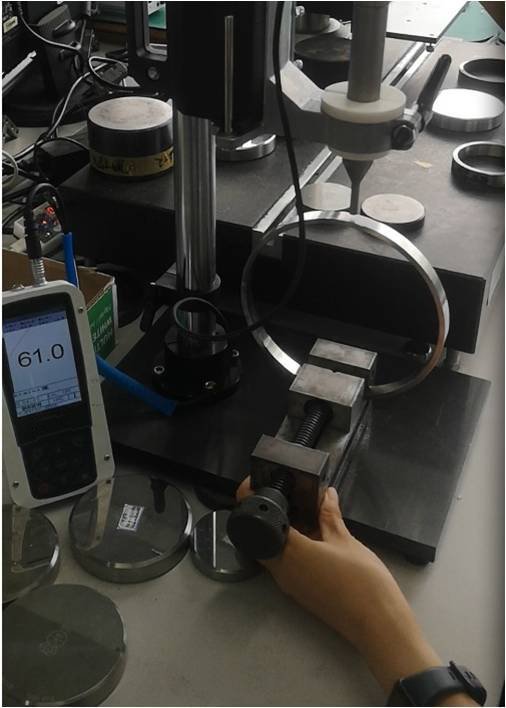

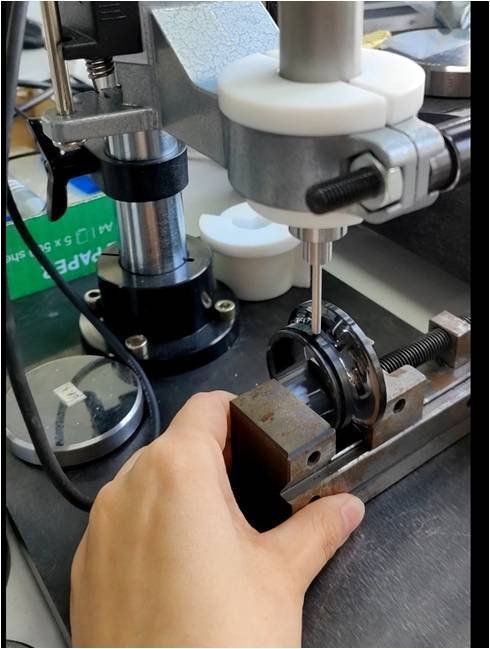

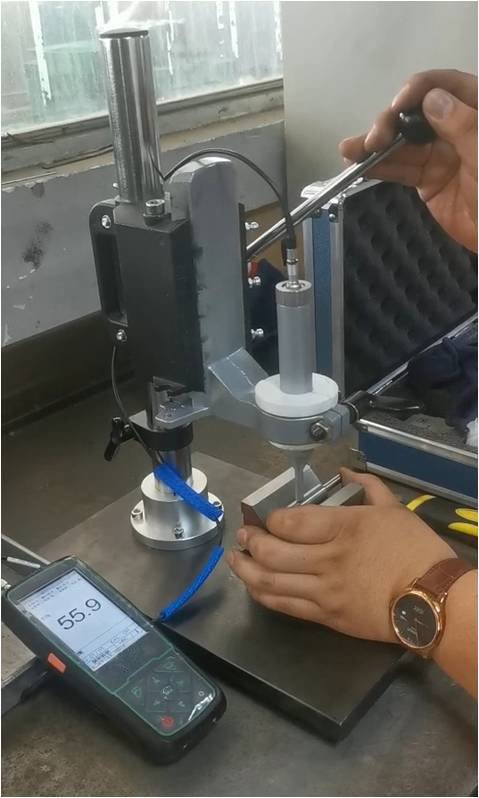

● Portable stand to enhance the measurement accuracy
Standard Delivery
● Main unit
● 10N manual probe
● Standard test block
● V-shape base
● Probe cable
● Charger
● LANCE certificate
● Warranty card
● Instruction manual
Optional Accessory
● 20N manual probe
● 50N manual probe
● LANCE-531 operation stand
|
Model |
LANCE-5630 |
|
Loading force |
10N, 20N, 50N |
|
Measuring range |
80~1400HV; 76-618HB; 20.3-68HRC; 41-105HRN |
|
Measuring accuracy |
±4%(<500HV) |
|
±5%(500HV~800HV) |
|
|
±6%(>800HV) |
|
|
Repeatability |
8%(<250HV); 6%(≥250HV) |
|
Indenter |
vickers diamond indenter |
|
Measuring direction |
Support 360° |
|
Hardness scale |
HV, HB, HRC, HRB |
|
Operating environment |
Temperature:-10℃~50℃; |
|
|
humidity: 30%~80% R.H |
|
Dimensions (mm) |
170x75x40 |
|
Weight (g) |
500 |
