Features

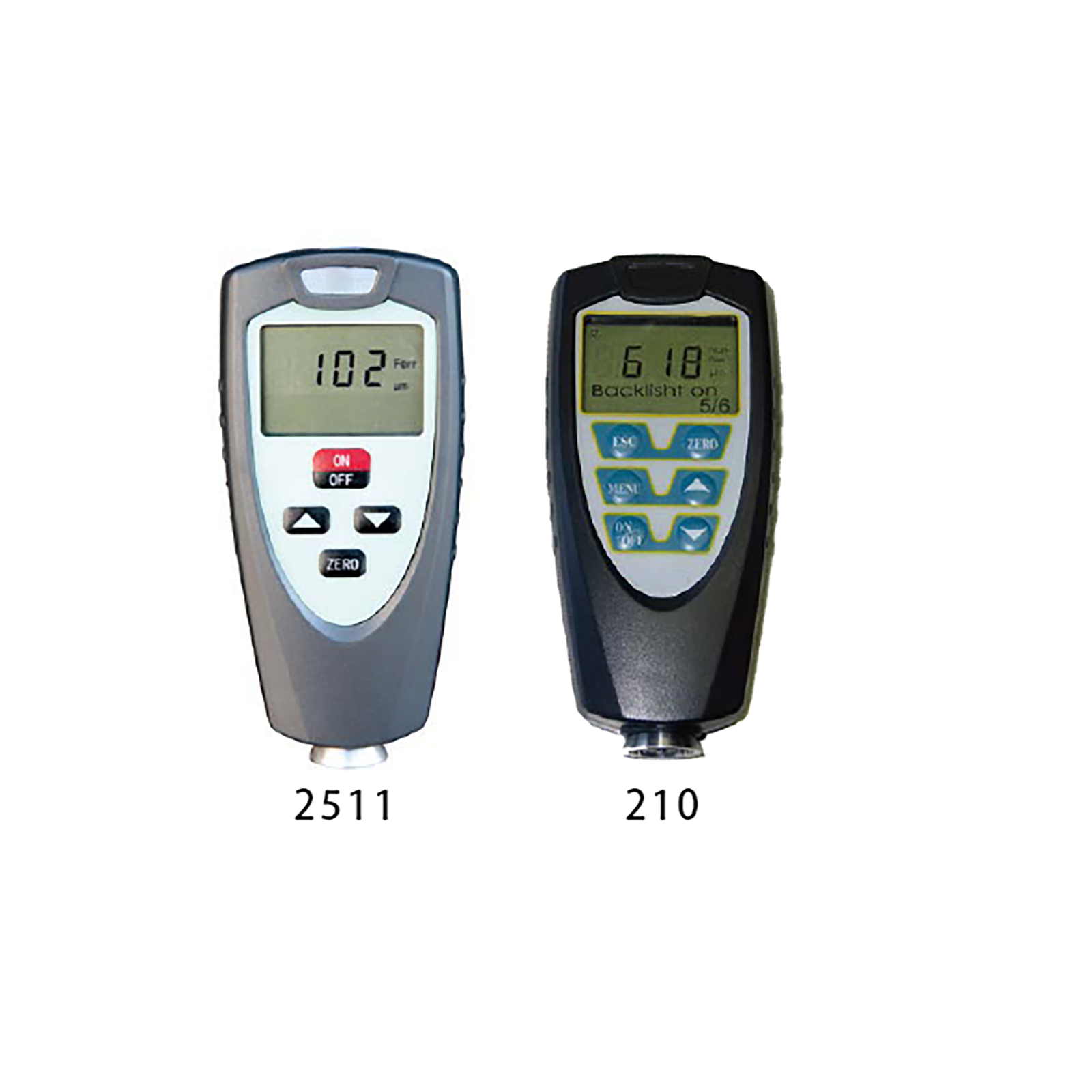

●LANCE2511 adopts magnetic induction (F) measuring method.
●LT210 adopts two measuring methods: magnetic induction (F) and eddy current (N).
●Single point measurement mode for LANCE2511; two measuring modes for LT210:
Continuous / Single
●Easy zero point calibration
●LANCE2511: 3 adjustable resolutions for different applications
●High speed data collection
●Automatically switch off
●Easy conversion between mm and inch
| Standard Delivery | |
| Main unit | 1 |
| Substrate | 1 |
| AAA 1.5V battery | 2 |
| Waist pack for main unit | 1 |
| LANCE certificate | 1 |
| Warranty card | 1 |
| Instruction manual | 1 |
|
Model |
LANCE2511 |
LT210 |
||||
|
Probe types |
F |
F |
N |
|||
|
Measuring methods |
magnetic induction |
magnetic induction |
eddy current |
|||
|
Measuring range |
0 to 1250 μm |
0 to 1250 μm |
0~1250 μm o~40μm (for chrome plate on copper) |
|||
|
Minimum resolution |
1μm |
5μm |
10μm |
|
|
|
|
Tolerance |
Zero point calibration |
±(3%H+1)μm |
± (3%H+1.5)μm |
± (3%H+10)μm |
±(3%H+1)μm |
± (3%H+1.5)μm |
|
Two point calibration |
H means the thickness of tested piece |
±[(1~3)%H+1]μm |
±[(1~3)%H+1.5]μm |
|||
|
Min. curvature radius (mm) |
Convexity 1.5 |
Convexity 1.5 |
Convexity 3 |
|||
|
Min. testing area diameter (mm) |
Ø7 |
Ø7 |
Ø5 |
|||
|
Critical thickness of substrate (mm) |
0.5 |
0.5 |
0.3 |
|||
|
Power supply |
Battery AAA (2pcs) |
|||||
|
Working temperature |
0~40°C |
|||||
|
Dimensions (mm) |
110×50×23 |
|||||
|
Weight (g) |
100 |
|||||
