Features
● Prompt testing of vibration on the workshop machines and fast flaw detection of motor, electric fan, pump, compressor and machine tools to guard against mechanical malfunction
● Quick checking of unbalance misalignment, bearings and gears
● Light-weight Compact size with only bottom
● Low energy consumption, keep working for more than 4.5 hours continuously.
● Auto power off

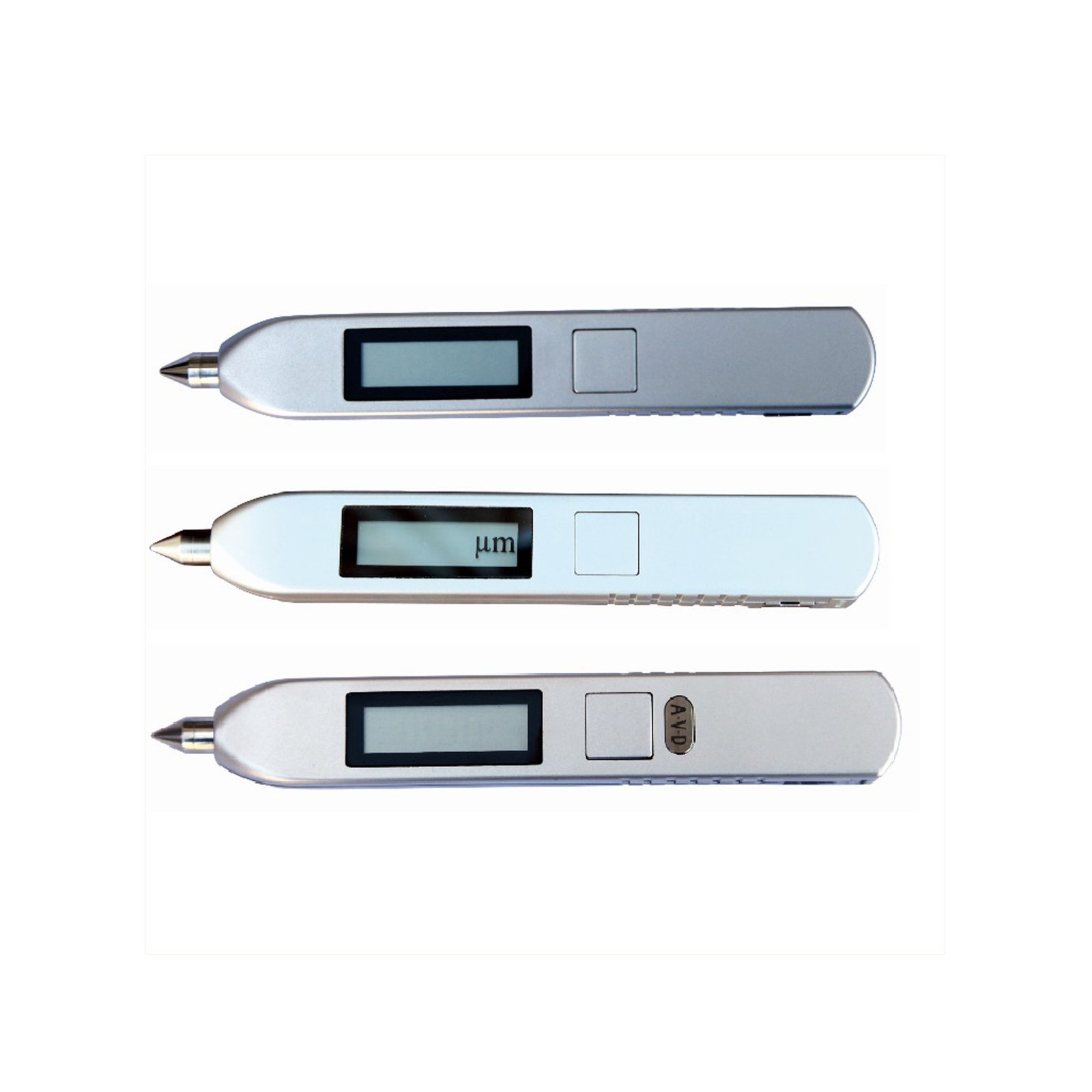

● LANCE7120 for velocity testing
● LANCE7122 for displacement testing
● LANCE7126 for testing of acceleration, velocity and displacement
|
Product |
LANCE7120 |
LANCE7122 |
LANCE7126 |
|
Parameters |
RMS of vibration velocity (mm/s) |
Displacement |
Acceleration, Velocity, Displacement |
|
Testing range |
Velocity: |
Displacement: |
Acceleration:0.1-199.9m/s2(peak) |
|
Frequency range |
Velocity: 10Hz-1KHz, |
Displacement: 10Hz~500Hz |
Velocity: 10Hz~1KHz |
|
Tolerance |
±5%±2 |
||
|
Display |
3½digits LCD |
||
|
Power |
Two button batteries(LR44 or SR44) |
||
|
Battery capacity |
Approx. 4.5 hours working continuously |
||
|
Operating temperature |
0℃~40℃ |
||
|
Humidity |
<85% |
||
|
Dimensions (mm) |
150×22×18 |
||
|
Weight (g) |
55(including batteries) |
||
