Porduct Introduction

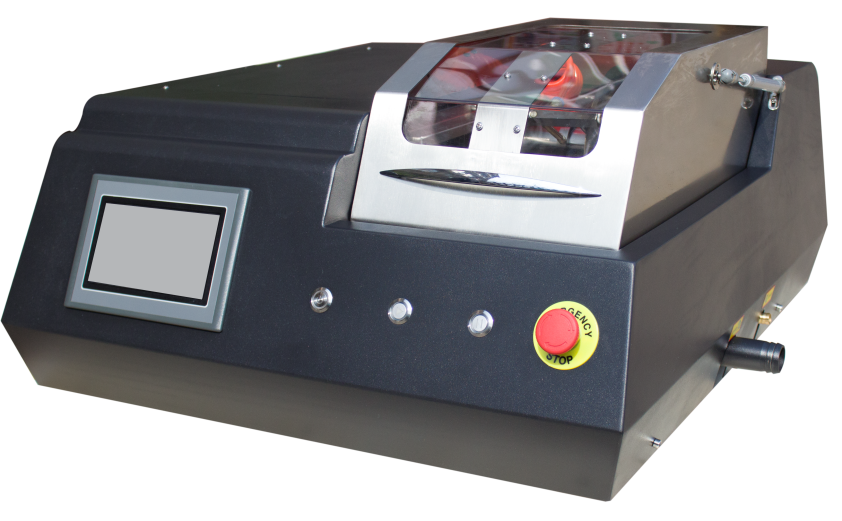

LANCE5000B high-speed precision cutting machine is suitable for precise and deformation free cutting of materialso such as metals, electronic components, ceramic materials, crystals, hard alloys, rock samples, mineral samples, concrete, organic materials, and biomaterials (teeth, bones). The device has high positioning accuracy; Large speed regulation range; Strong cutting ability; Strong circulation cooling system; Can preset feed speed;
Touch screen control display, easy to operate and control; Automatic cutting can reduce operator fatigue and ensure consistency in sample production; A spacious and bright cutting room with a safety switch. It is one of the ideal equipment for industrial and mining enterprises and research institutes to prepare high-quality samples.
Technical Specification
| Standard configuration | |
| parts | Specifications |
| structure | Desktop |
| Cutting blade | Standard configuration φ200xφ32×0.9 |
| Spindle speed | 500-5000r/min |
| Feed rate | 0.01-30mm/min |
| Manual feed rate | 0-15mm/s |
| reverse speed | 0-15mm/s |
| Impact cutting distance | 0.1-2mm |
| Cutting stroke (Y-axis) | 200mm |
| Maximum cutting diameter | φ60mm |
| Maximum length of workbench clamping | 150mm |
| Maximum width of workbench clamping | 200mm |
| servo motor | power：1.1kw |
| Usage data | Can store 12 types |
| Power Supply | AC220V 50HZ |
| External dimensions | 750×860×430mm |
| weight | 126KG |
Standard accessories
| item | QTY | specification | QTY |
| Wrench 17-19 | Each 1 | Cooling system( water tank,water pump,inlet pipe,drain pipe) | 1 |
| Wrench 0-200mm | 1 | Cutting liquid | 1bottle（1L） |
| Cutting piece（Φ200 diamond） | 1 | Hose clamp | 4 |
| Rectangle wrench 5mm | 1 | Power cable 3*1.5 | 1 |
