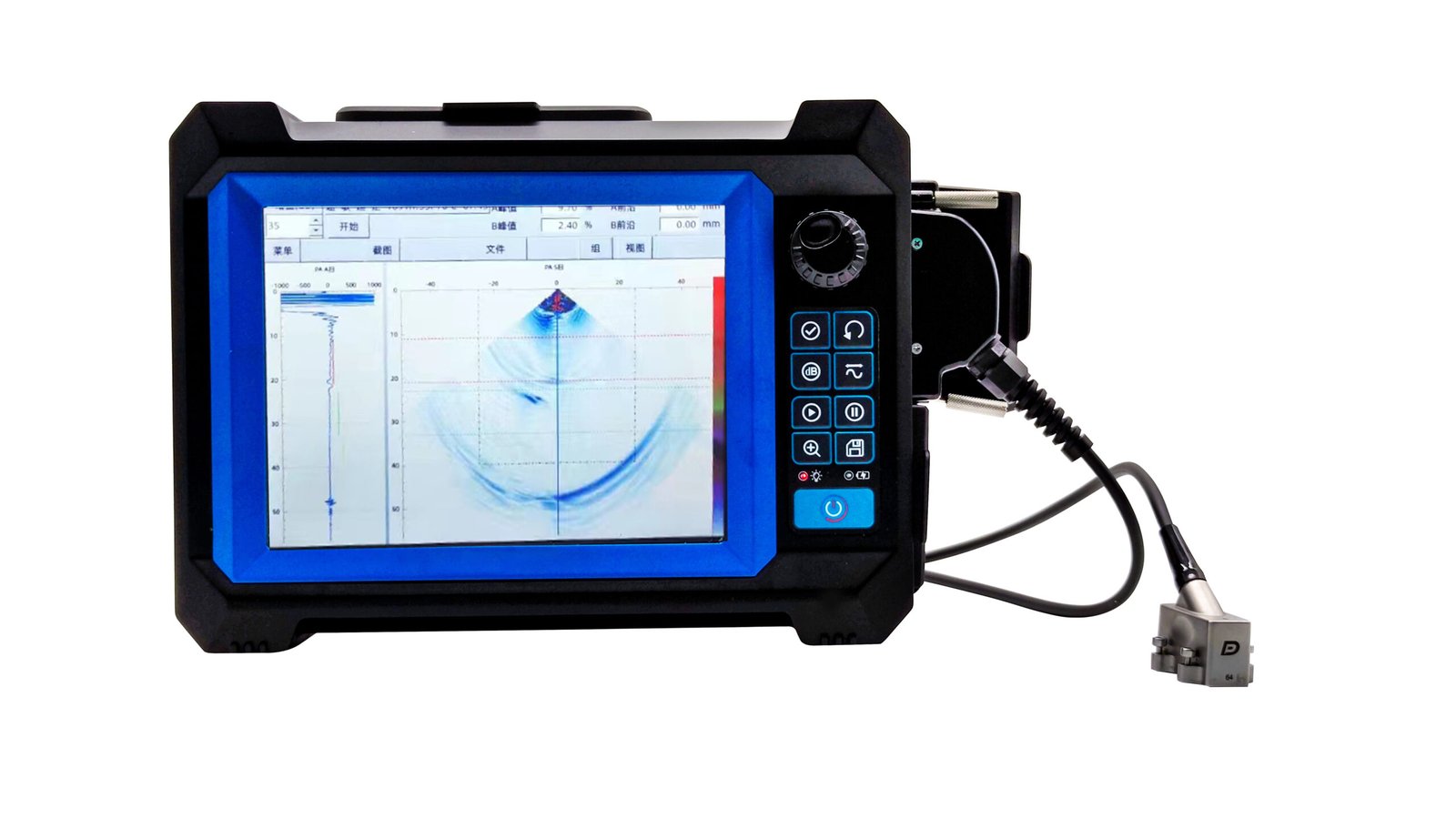

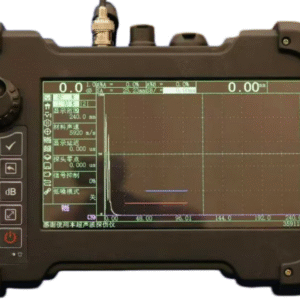

Features
●Portable, thin and powerful
●16-channel 64-element phased array ultrasonic detection unit, capable of fully focused imaging
●2-channel conventional ultrasonic unit, capable of TOFD detection
●2ns transceiver delay resolution
●Unique triple aperture function significantly improves spatial resolution
| Basic specifications | ||
| Dimensions (mm) | 280x190x65 | |
| Battery | Lithium-ion rechargeable battery, 11.1V | |
| Battery working time (h) | 5 | |
| Control | Button+gear+touch | |
| Protection level | IP65 | |
| Display and storage | ||
| Display type | Color display, touch screen | |
| Display size | 8.4 inch | |
| Display resolution | 800*600 | |
| Storage media | SD card or USB | |
| Input & Output | ||
| USB interface | 4 USB2.0 | |
| Ethernet | Gigabit Ethernet | |
| Video output | 1 HDMI | |
| Encoder interface | 2-axis quadrature encoder | |
| Digital input and output | 4 inputs 4 outputs | |
| Beamforming | PA | UT |
| Number of channels | 16 | 2 transmit, 1 receive time-division multiplexing |
| Number of wafers | 64 | Invalid |
| Focus rule | 512 | Invalid |
| Launch delay range | 0~16us, step 2ns | Invalid |
| Receive delay range | 0~16us, step 2ns | 0~3000us, step 8ns |
| Scan type | Line san, fan scan, TFM | Support TOFD detection |
| Pulse generator | PA | UT |
| Pulse shape | Bipolar square wave pulse | Negative square wave pulse |
| Pulse voltage | Maximum +-100V | 100~400V, 10V step |
| Pulse width | 32~1000ns | 32~1000ns, step size 8ns |
| Pulse rise and fall time | ≤10ns | ≤10ns |
| Output impedance | ≤50Ω | ≤50Ω |
| Repeated transmission frequency | up to 10kHz | up to 4kHz |
| Receiver | PA | UT |
| Gain range | 0~80dB,
0.1dB Step |
0~110dB,
0.1dB Step |
| System bandwidth | 0.5~15MHz(-3dB) | 0.5~20MHz(-3dB) |
| Vertical linearity error | ±2% | ±2% |
| Amplifier accuracy (dB) | Within 20dB+-1dB | Within 20dB+-1dB |
| Dynamic range (dB) | 70 | 100 |
| Data collection and processing | PA | UT |
| Sampling Rate | Maximum equivalent to 125MHz | Maximum equivalent to 250MHz |
| Sampling points | 4096 points | 16384 |
| Average times | None | None,2,4,8,16,32,
64,128 |
| Detection | Positive half wave, negative half wave, full wave, radio frequency | Positive half wave, negative half wave, full wave, radio frequency |
| Filter band | 8 filter frequency bands available | 8 filter frequency bands available |
