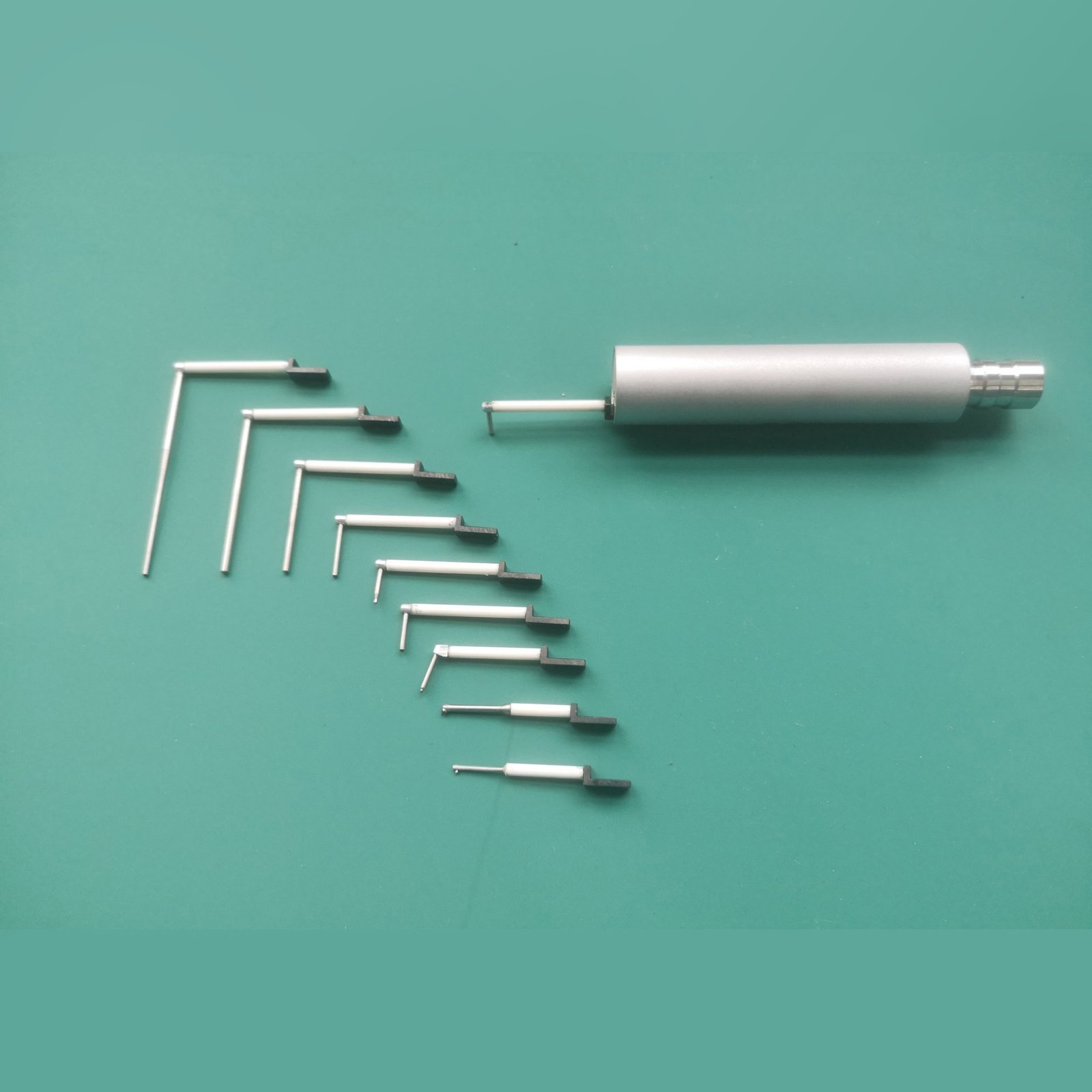

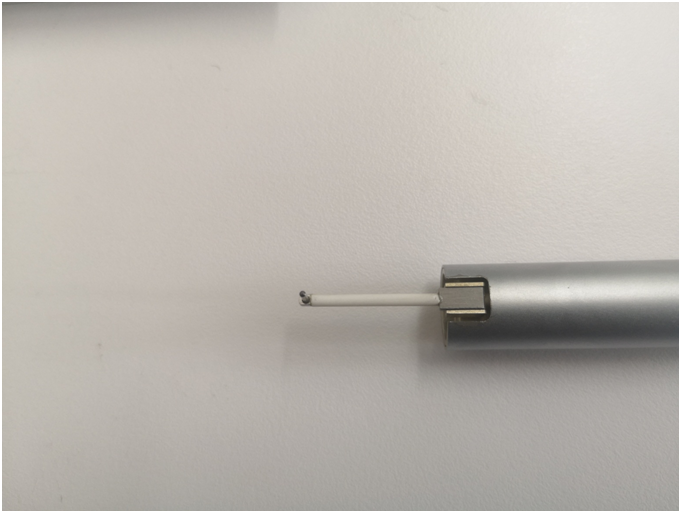

LANCE-S247 replaceable pickup is a roughness sensor with the stylus that can be detached separately. The stylus and the sensor body are connected by magnetic attraction. When encountering unexpected situations such as impact, the stylus will fall off by itself, which avoids damage and improve the reliability of the sensor. At the same time, the split structure is adopted, and different types of stylus can be selected to install on the sensor body according to the shape and size of the workpiece to be tested, which improves the versatility of the sensor. The sensor adopts a skidless design and can work with LANCE-3231/LANCE-3233/LANCE-3234 roughness measuring instruments. It greatly reduces the cost for you.
Standard stylus: 5mm (equal to LANCE-S230/LANCE-S241/LANCE-S244)
Optional stylus:
1. 40mm (equal to LANCE-239)
2. 30mm (equal to LANCE-S238)
3. 20mm (equal to LANCE-S236)
4. 10mm (equal to LANCE-S233)
5. 7mm V shape (equal to LANCE-S230UV)
6. 7mm U shape (equal to LANCE-S230U)
7. 7mm oblique stylus (equal to LANCE-S231)
8. 2mm oblique stylus (equal to LANCE-S243)
9. small hole stylus (equal to LANCE-S232)
