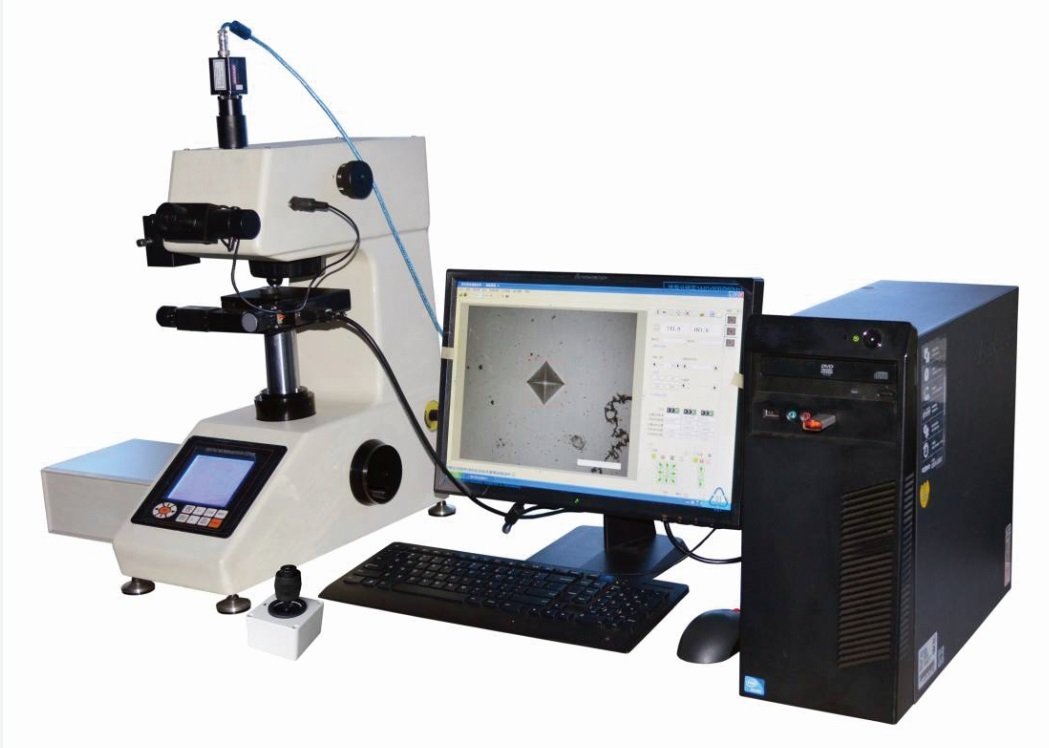

Fully Automatic Micro Vickers Hardness Tester LANCE6610AT

LANCE6610AT Fully Automatic Micro Vickers Hardness Tester is integrated with several new technologies such as optical imaging, mechanical displacement, electronic control, digital imaging, image analysis, computer processing and so on. It controls the Micro Vickers hardness tester and automatic test table by the computer, and displays the indentation image on the computer screen. By means of automatic reading and manual reading, it accurately measures the HV hardness, hardening depth, film thickness, distance between two points of metals and some non-metallic materials and various films. It also can shoot metal surface morphology and taking fixed rate printing etc. This system breaks through the traditional test method, realize the hardness test of fully automatic, high precision, high repeatability, and it is the important equipment for materials analysis.

Standard Delivery

Name	Qty	Name	Qty
Instrument Main Body	1 set	10^×Digital Measuring Eyepiece	1 pc
Diamond Micro Vickers Indenter	1 pc	10^×、40^×Objective	each 1 pc
Weights	6 pcs	Weight Axis	1 pc
Motorized Test Table	1 pc	Flat Clamping Test Table	1 pc
Thin Specimen Test Table	1 pc	Filament Clamping Test Table	1 pc
Horizontal Regulating Screw	4 pcs	Level	1 pc
Fuse 1A	2 pcs	Halogen Lamp 12V、15~20W	1 pc
Power Cable	1 pc	Screw Driver	2 pcs
Hardness Block 400~500 HV0.2	1 pc	Hardness Block 700~800 HV1	1 pc
Anti-dust Cover	1 pc	Usage Instruction Manual	1 copy
Computer (Hard disk: 500G, Memory: 2G, 19 inch LCD screen)	1 set	Ink Jet Printer	1 set
CCD Camera	1 set	1.5^×Adapter	1 pc
USB Softdog	1 pc	Control Cables	1 pc
RS232 Cable	1 pc	Motorized Test Table Control Box	1 pc
Measuring Software	1 pc	Joystick	1 pc

Technical Specifications

Model		LANCE6610AT
Test Force	gf	10gf, 25gf, 50gf, 100gf, 200gf, 300gf, 500gf, 1000gf
	N	0.098N, 0.246N, 0.49N, 0.98N, 1.96N, 2.94N, 4.90N, 9.80N
Test Range		1HV~2967HV
Test Mode		HV/HK
Loading Method		Automatic (Loading/Dwell/Unloading)
Shifting between Objective and Indenter		Automatic Shifting
Conversion Scale		HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HB
Data Output		Built-in Printer WORD or EXCEL Report with Curve Chart
Hardness Reading		Indentation Displaying and Automatic Measuring on PC
Objective		10^×(Observe)，40^×(Measure)
Eyepiece		10^×
Total Magnification		100^× ，400^×
Resolution		0.0625μm
Dwell Time		0~60s
Light Source		Halogen Lamp
Motorized X-Y Test Table		Size: 110×110mm; Travel: 50×50mm; Resolution: 0.002mm
Max. Height of Specimen		100mm
Throat		98mm
Power Supply		AC220V，50Hz
Execute Standard		ISO 6507，ASTM E384，JIS Z2244，GB/T 4340.2
Dimension		480×325×545mm，Packing Dimension: 600×360×800mm
Weight		Net Weight: 31kg，Gross Weight: 44kg
